    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2

    Ask Lasest Price
    Brand Name : Highfly
    Model Number : HFL-EVC2201E
    Supply Ability : 100000 Piece/Pieces per Week
    Price : $540.00/pieces 2-5 pieces
    • Product Details
    • Company Profile

    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2

    PRODUCT PARAMETERS
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    Specification

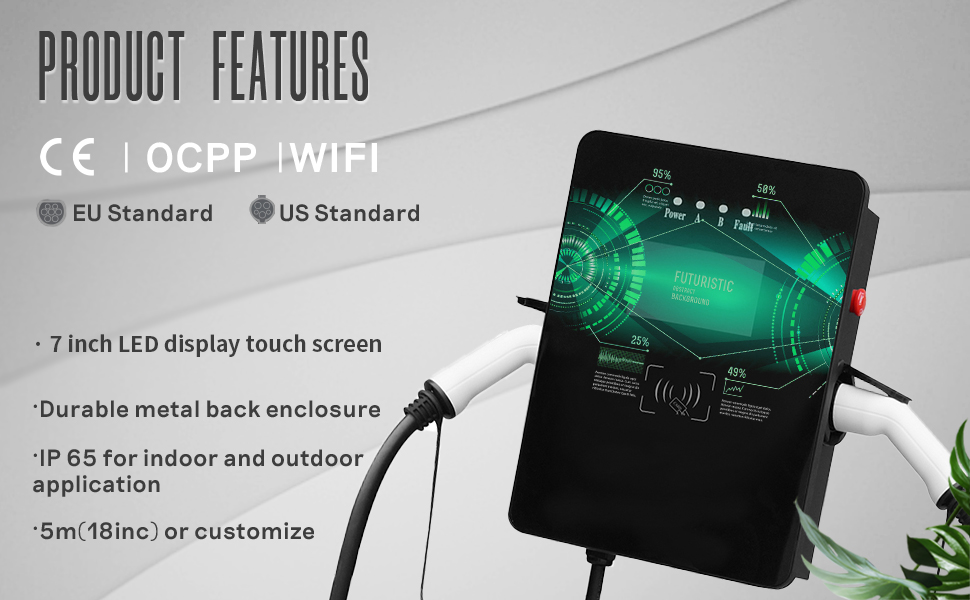

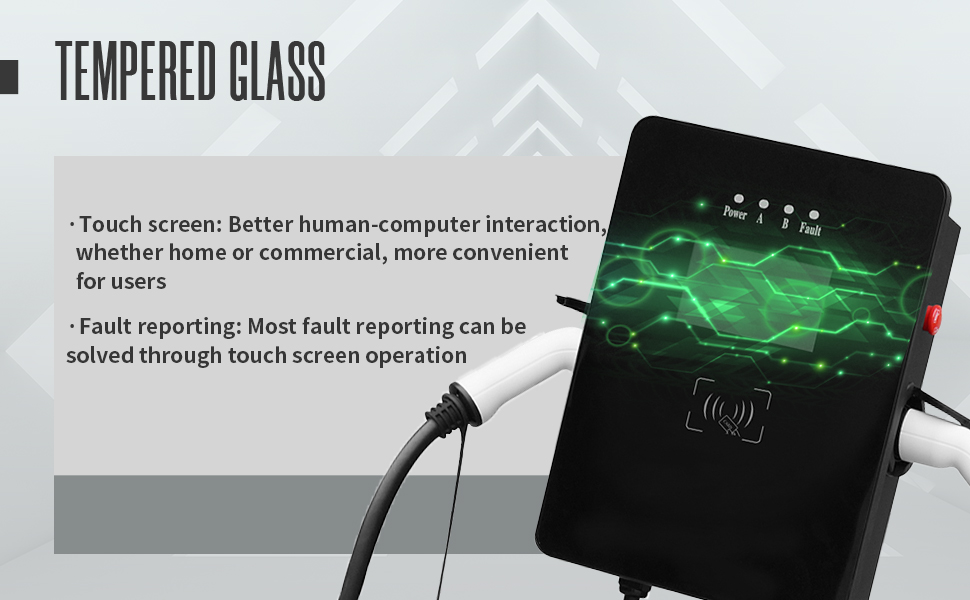

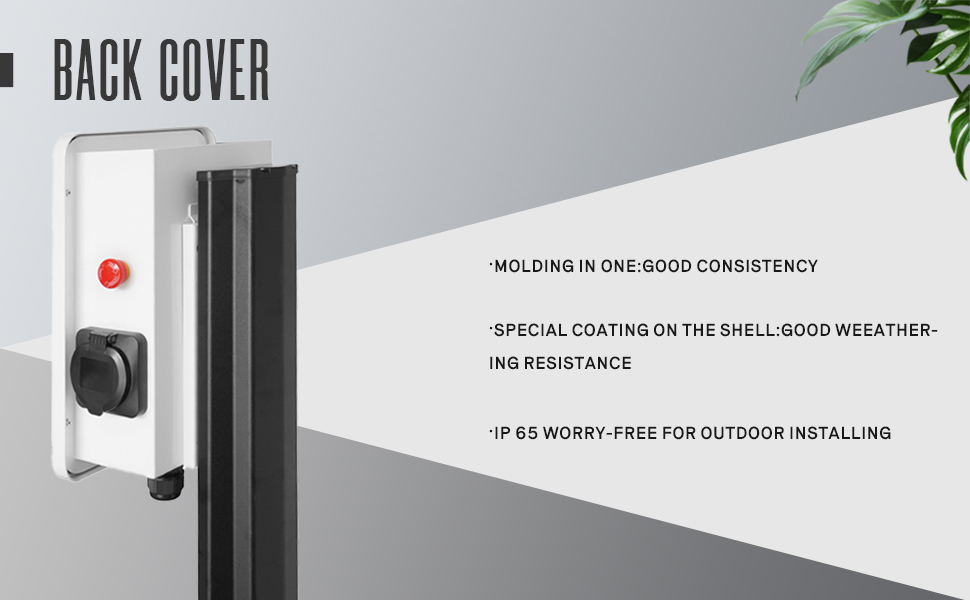

    * Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back
    cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.
    * OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
    *7 inch highlighted LED touch screen: Shows live charging current, voltage, power consumption, time
    * Versatile Installation wall mount or pedestal applications
    Protection:
    * RCD Type A+DC 6Ma or Type B inside.
    * High quality production and design standards for safe and reliable use with multiple fault protection: Overvoltage
    Protection,Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection,
    Over-temp Protection, Surge Protection and etc.
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    Power Specification
    EU Standard
    Charging Connector Type
    IEC 62196-2 (Type 2)
    AC Power Input Rating
    1 Phase
    3 Phase
    230V±15%
    380V±15%
    AC Power Output Rating
    3.5kw/16A
    11kw/16A
    7kw/32A
    22kw/32A
    7kw*2/32A*2
    11kw*2/16A*2
    22kw*2/32A*2
    Frequency Rating
    50/60 Hz
    User Interface & Control
    Emergency Stop Button
    Yes
    Plug-and-Charging
    Yes
    RFID Card Charging
    Yes
    App Charging
    Yes
    Ethernet Interface
    Yes
    Wifi Function
    Yes
    OCPP Protocol
    OCPP 1.6
    7-inch LED Touch Screen
    Yes
    Protection
    Over Voltage Protection
    Yes
    Under Voltage Protection
    Yes
    Over Load Protection
    Yes
    Short Circuit Protection
    Yes
    Earth Leakage Protection
    Yes
    Ground Protection
    Yes
    Over-temp Protection
    Yes
    Surge Protection
    Yes
    RCD
    Type A+DC 6Ma OR TYPE B
    Environmental
    Storage Temperature
    -40 ~ 75℃
    Operating Temperature
    -30 ~ 50℃
    Operating Humidity
    Up tp 95%, non-condensing
    Altitude
    ≤2000m
    Cooling Method
    Natural Cooling
    Wallbox Mechanical parameters
    IP Code
    IP65
    Dimension(H×W×D,mm)
    457×338×115
    Weight
    12.5kg
    Charging Cable Length
    ≤2000m
    Enclosure Material
    Front-panel: Tempered Glass, Back-cover: Plate Metal
    Packaging parameters
    Packaging material
    Professional carton
    Dimension(H×W×D,mm)
    530×360×135
    Weight(Including Wallbox Mechanical)
    13kg
    Floor mounted rod(Optional)
    Dimension(H×W×D,mm)
    1350×200×50
    Weight
    9kg
    Enclosure Material
    Metal
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    CE EV Fast Wall mounted AC Charging Station 22kw*2 Type 2
    FAQ
    Q1: Can I get a lower price if I order large quantities?
    A1: Yes, the larger the quantity, the lower the price.
    Q2: What's the MOQ?
    A2: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
    Q3: How about your delivery time?
    A3: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    Q4:What is your terms of payment?
    A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
    Q5:What is the warranty?
    A5: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of delivery
